Python & In-memory CGNS trees
Using CGNS trees for Code-coupling

Marc Poinot
Computational Fliud Dynamics and Aeroacoustics Dept.
ONERA
France

Code life cycle

• Idea/Code/Test/Change
  • Prototype
  • Test
  • Pre/Post processing
  • Code-coupling
  • Parallel
• All you can do with another programming language
  • Interpreted
  • Actually dedicated to code gluing
  • Script languages are easily extensible
• Baseline for an Open System

Python

• Object-oriented interpreted language
  • Very easy to learn
  • Clear syntax
  • Powerful numerical extensions
    • Python/C/C++/Fortran arrays
• Good candidate for code gluing
  • Pre & post processing on CGNS data
  • A scripting language

pyCGNS

• Python wrapper on CGNS MLL and ADF
  • Straightforward mapping
  • Use 100% python types
    • Lists, strings, integers, floats
    • Numerical array
      • Contiguous C/Fortran array
      • Points to actual memory zone
• Easy scripting
  • Perform CGNS calls on-the-fly

Python/CGNS tree

• Tree representation
  • List of nodes
  • Each node has...
    • A Name
    • A Type
    • A Value
    • A list of sons
  • Generic CGNS low level node requirements (ADF/HDF5)

   ['Transform',(1, 2, 3),[],'int[IndexDimension]'],
   ['PointRange',((1, 1, 1), (1, 9, 9)),[],'IndexRange_t'],
   ['PointRangeDonor',((21, 1, 1), (21, 9, 9)),[],'IndexRange_t']

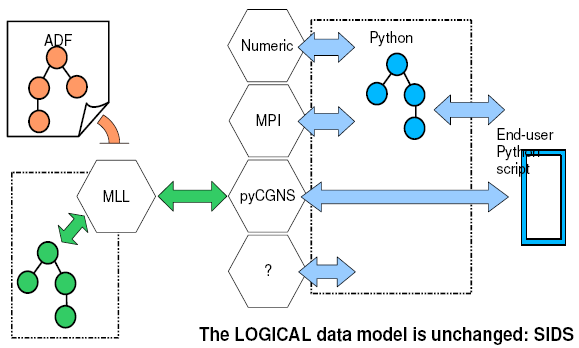

File and memory

• ADF/HDF5 file
  • open/read/write/close
  • MLL keeps private tree structure in memory
  • ADF is per-node but still private data structure
  • PyCGNS only maps to this behaviour
• Python tree
  • The Python/CGNS tree is just another implementation
  • Structure in memory but not a proprietary one
  • Same interface/Different implementation

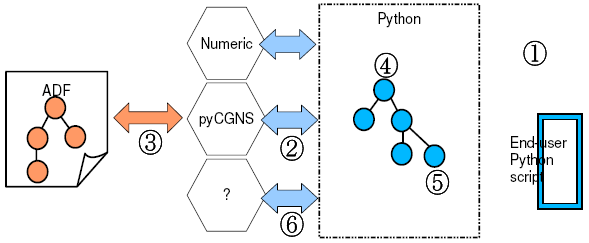

File and memory workflow

pyCGNS example

   import CGNS
   import numarray as N

   x=y=z=N.zeros((3,5,7),'d')

   a=CGNS.pyCGNS("newfile.cgns",CGNS.MODE_WRITE)

   print a.error

   idb=a.basewrite("Base",3,3)
   idz=a.zonewrite(idb,"Zone 01",[3,5,7],CGNS.Structured)

   a.coordwrite(idb,idz,CGNS.RealDouble,CGNS.CoordinateX,x)
   a.coordwrite(idb,idz,CGNS.RealDouble,CGNS.CoordinateY,y)
   a.coordwrite(idb,idz,CGNS.RealDouble,CGNS.CoordinateZ,z)

   a.close()

Scripting example: Prototypes

• Can I do this and that with CGNS?
  • Just try it!
  • Versatile testing support

   import CGNS

   f=CGNS.pyCGNS("hydro-result.cgns",CGNS.MODE_WRITE)

   f.basewrite("MASS2",3,3)
   f.zonewrite(1,"Block01",(2,3,4,1,2,3,0,0,0),CGNS.Structured)
   f.solwrite(1,1,"07-01-1944 06:00:00",CGNS.CellCenter)
   f.fieldwrite(1,1,1,CGNS.RealDouble,"sediment",w)
   f.goto(1,[(CGNS.Zone_t,1),(CGNS.FlowSolution_t,1),(CGNS.DataArray_t,1)])
   f.descriptorwrite("Description","Text here")
   f.descriptorwrite("Units","Text here")

   f.close()

Scripting example: post-processing

• Add links to actual grids
  • The computation sessions results are sharing the same grid
  • No duplicates
  • Post-processing adds links to the actual grid
  • True MLL/ADF calls performed on file

   from CGNS import *

   a=pyCGNS("result-001.cgns",MODE_MODIFY)

   a.goto(1,[(Zone_t,1)])
   a.linkwrite("GridCoordinates","grid.cgns","/Base/Zone/GridCoordinates")

   a.close()

Scripting example: pre-processing

• Structured grid seen as unstructured
  • Generates connectivity
  • Read the file/Change in-memory tree/Send to code

Code-coupling

• Blind connection to peer code
  • Open System: Public interface
    • Common baseline
    • Restriction input/output
  • Use Bct for data exchange
    • Input/Output: BCDataset
    • « Contact surface »
    • Strong requirements for an arbitrary exchange mean
• Efficiency
  • Memory +no data duplication
  • Easy stub & duplication

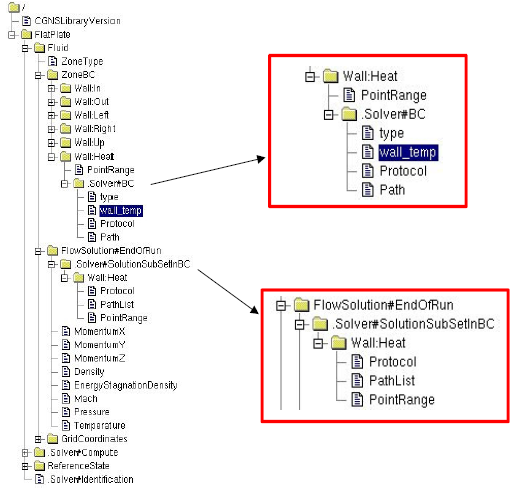

Code-coupling CGNS tree

Scripting example: code-coupling

   import MpCCI

   pathB="/FlatPlate/Fluid/ZoneBC/Wall:Heat/DataSet#01/NeumannData"
   pathI=pathB+"/Temperature"
   pathO=pathB+"/NormalHeatFlux"
   it=E.iteration()

   fqx=mcci.Parameter_info("Simulation_Fluid_2_Therm_Ratio",MpCCI.CCI_INT)

   xp=xw.get(E.RUNTIME_TREE)
   xf=X.retrieve(pathO,xp)
   if ( xf and ((it % fqx ) == 0 )):
       sd1=mcci.Parameter_info("Fluid_Private_Synchro_ID",MpCCI.CCI_INT)
       ZID=mcci.Parameter_info("Global_Mesh_ID",MpCCI.CCI_INT)
       BID=1
       nnodes=len(xf[1].flat)
       if ( (it % fqx ) == 0 ):
         mcci.Put_nodes(ZID,BID,171,1,nnodes,0,None,MpCCI.CCI_DOUBLE,xf)
         mcci.Reach_sync_point(sd1)

   (rC,nC)=mcci.Get_nodes(ZoneID,BoundaryID,154,1,nnodes,0,None,MpCCI.CCI_DOUBLE)
   ...
   E.update((E.RUNTIME_TREE,rt)

Scripting example: parallel

   import elsApy    as E
   from Scientific  import MPI

   communicator=MPI.world.duplicate()
   id = communicator.rank
   if   ( id == 0 ): remoteId=1
   elif ( id == 1 ): remoteId=0

   datatree=E.get(E.RUNTIME_TREE)
   temp=pickle.dumps(datatree)
   communicator.nonblocking_send(temp, remoteId, id)
   return,rank,tag=communicator.receiveString(None,None)
   result=pickle.loads(return)

   for l in result:
     if (l[0] == "RunTimeTree"):
       for ll in l[2]:
         if (ll[0] == "Rotor#Output"):  ll[0]="Stator#Input"
         if (ll[0] == "Stator#Output"): ll[0]="Rotor#Input"

   E.update(E.RUNTIME_TREE,result)

In-memory issues

• Dedicated to a platform
  • One per platform: requires an API
  • Translation mandatory between platforms
    • XDR-like
• Best should be
  • Use an existing system
    • Python/Numeric (+Marshalling)
    • HDF5 (?)

Python/CGNS Tree interface

• List of Python objects
  • MLL-like interface
    • NewBase
    • NewZone
    • NewGridCoordinates
    • NewCoordinates
    • NewDataArray
  • Numeric Python arrays
  • Input/Output from MLL
  • Use paths instead of ids
    • GetByExactPath
    • GetByRegexpPath
    • GetAllTreePath

   T=CGNSTree()
   base=newBase(T,"Base",3,3)
   print T
   getChildrenNameByPath(T,"/Base/Zone-002/GridCoordinates")

   [['CGNSLibraryVersion', 2.4, [], 'CGNSLibraryVersion_t'],
    ['Base', array([3, 3]), [], 'CGNSBase_t']
   ]

Script example: Python/CGNS tree

   T=C.newCGNS()

   base=C.newBase(T,"Base",3,3)
   size=(20,10,5)

   z1=C.newZone(base,"Zone-001",size)
   C.newCoordinates(z1,"CoordinatesX",x)
   C.newCoordinates(z1,"CoordinatesY",y)

   f=open("T01.py","w+")
   f.write(str(T))
   f.close()

   clist=C.getChildrenNameByPath(T,"/Base/Zone-002/GridCoordinates")
   for c in clist:
     n=C.getByExactPath(T,"/Base/Zone-002/GridCoordinates/"+c)
     print C.nodeName(n)
     v=C.nodeValue(n)

   print C.getChildrenType(T,"CGNSBase_t")
   print C.getAllTreePath(T)
   print C.getAllTreeType(T,"Zone_t")
   print C.getAllTreeType(T,"DataArray_t")

Workflow pre/post processing

• Use tools operating on data trees
  • A data model is described by a grammar: SIDS
  • Translate the grammar for existing tools
    • Relax-NG, BNF, ...
• In-Memory data structre can be used for...
  • Perform tree verification
  • Operate tree as ADT
    • Generate code:
      • MLL/ADF/HDF5/XML/SQL/XDR/...

More than float arrays...

• CGNS is more than a storage mean...
  • CGNS as a data model
    • Store data the « CGNS way »
      • e.g. Map to 100% python objects
    • Tree with public definition
  • CGNS as component interface
    • Code-coupling data model
    • Transfer whole tree instead of arrays
      • e.g. Memory buffer based system
