CFD General Notation System (CGNS)
Usage for Unstructured Grids

Edwin van der Weide
Stanford University

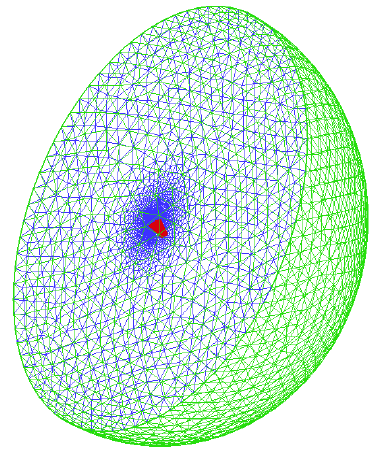

Example Unstructured Grid

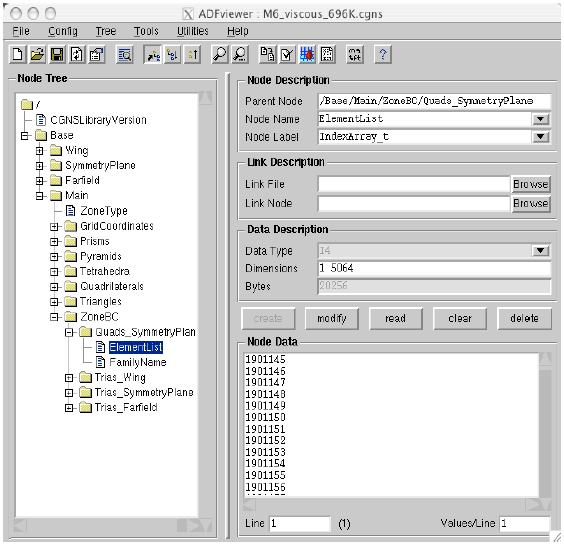

Unstructured grid storage

• Several possibilities to store an unstructured grid.

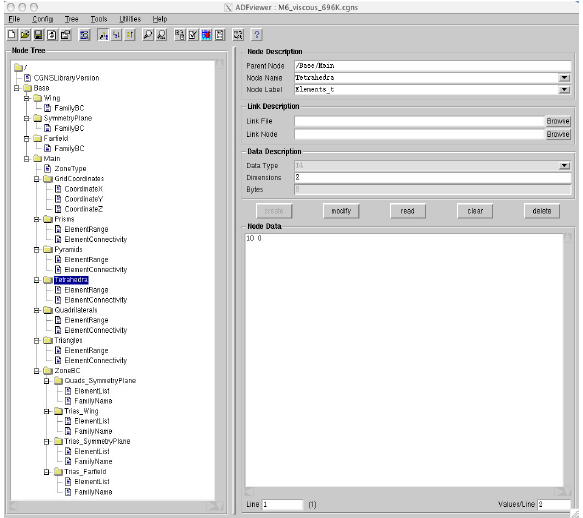

  • Every element type is stored in a separate Elements_t node. Recommended.
  • One Elements_t node, which stores all elements using the MIXED Element type.
  • Store all elements as arbitrary polygons, NGON_n Element type.
  • Arbitrary combinations of the possibilities above.
  • Pros
    • Flexibility.
  • Cons
    • Reading becomes complicated.

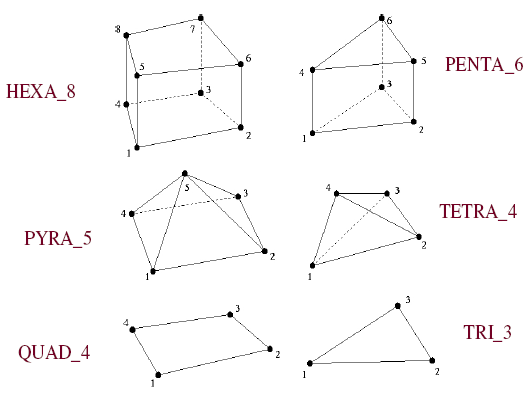

Connectivities (linear elements)

See sids/conv.html#unstructgrid for all supported elements.

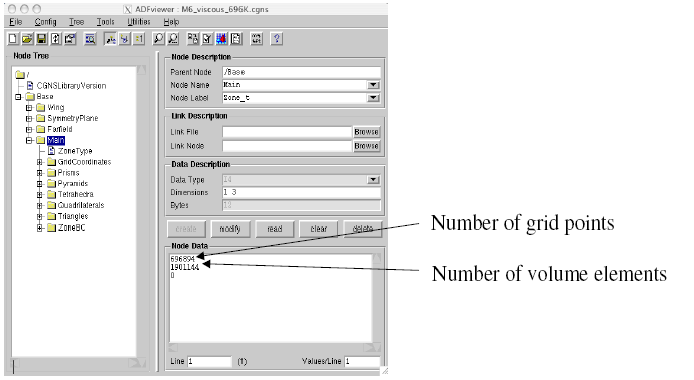

Info in the zone

• # elements = # elements of highest dimension.
  • E.g. for a 3D problem the number elements of the surface grid should NOT be stored in the zone.

Single Zone vs. Multiple Zones

• Multiple zones can be used when there is relative motion, non-matching grids
• Multiple zones can also be used to store a domain decomposition
  • Drawback: not very flexible
  • Better: use the partial read/write functions

Example - CGNS Code (1)

#include "cgnslib.h"

   /* Open the CGNS for reading and check if the file was found. */

   if(cg_open(gridFile, MODE_READ, &fileInd) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

   /* Determine the of bases in the grid. This example assumes */
   /* one base. However it is allowed to have multiple bases. */

   if(cg_nbases(fileInd, &nBases)!= CG_OK)
     Terminate("readGridCGNS", cg_get_error());
   if(nBases != 1)
     Terminate("readGridCGNS", "This example assumes one base");
   base = 1;

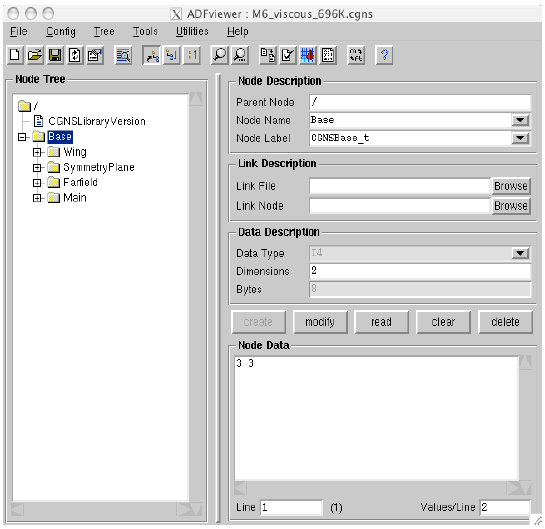

   /* Check the cell and physical dimensions of the bases. */
   /* Both should be 3. */

   if(cg_base_read(fileInd, base, cgnsName, &cellDim, &physDim) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

Example - CGNS Code (2)

   /* Read the number of zones in the grid. */
   /* This example assumes one zone. */

   if(cg_nzones(fileInd, base, &nZones) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());
   if(nZones != 1)
     Terminate("readGridCGNS", "This example assumes one zone");
   zone = 1;

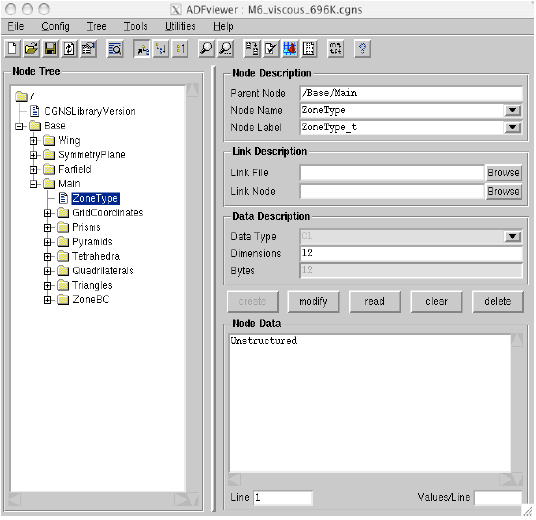

   /* Check the zone type. This should be Unstructured. */

   if(cg_zone_type(fileInd, base, zone, &zoneType) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());
   if(zoneType != Unstructured)
     Terminate("readGridCGNS", "Unstructured zone expected");

   /* Determine the number of vertices and volume elements in this */
   /* zone (and thus in the grid, because one zone is assumed). */

   if(cg_zone_read(fileInd, base, zone, zoneName, sizes) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());
   nVertices    = sizes[0];
   nVolElements = sizes[1];

Example - CGNS Code (3)

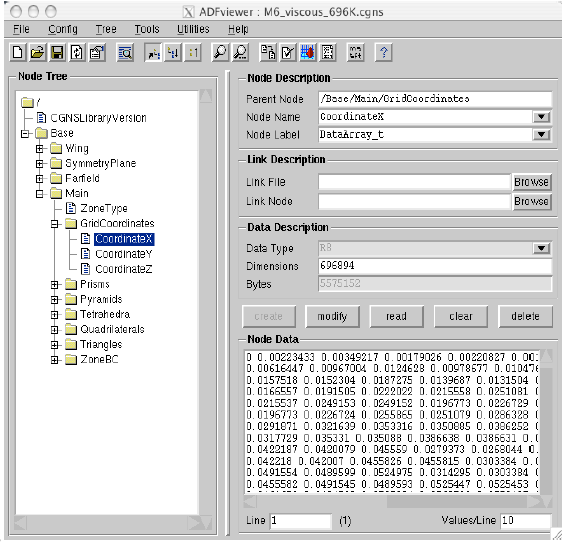

   /* Determine the number and names of the coordinates. */

   if(cg_ncoords(fileInd, base, zone, &nCoords) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

   if(cg_coord_info(fileInd, base, zone, 1, &dataType, name) != CG_OK)
     Terminate("readCGNS", cg_get_error());

   /* Read the x-coordinates. The y and z-coordinates can be read */
   /* similarly. Just replace CoordinateX by CoordinateY and */
   /* CoordinateZ respectively. This assumes Cartesian coordinates */
   /* in double precision. Note that CGNS starts the numbering at */
   /* 1 even if C is used. */

   one = 1;
   if(cg_coord_read(fileInd, base, zone, "CoordinateX", realDouble, &one,
                    &nVertices, coorX) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

   /* Determine the number of sections for this zone. Note that */
   /* surface elements can be stored in a volume zone, but they */
   /* are NOT taken into account in the number obtained from */
   /* cg_zone_read. */

   if(cg_nsections(fileInd, base, zone, &nSections) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

Example - CGNS Code (4)

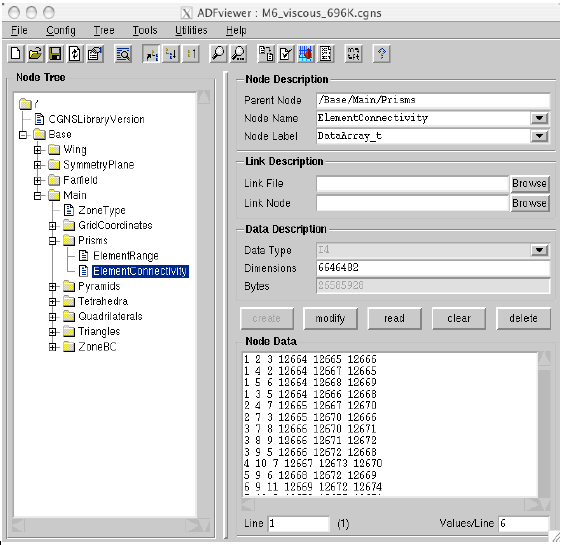

   /* Loop over the number of sections and read the element */
   /* connectivities. As CGNS starts the numbering at 1 the */
   /* for-loop starts at 1 as well. */

   for(sec=1; sec<=nSections; sec++)
   {
     /* Determine the element type and set the pointer for the */
     /* connectivity accordingly. */

     if(cg_section_read(fileInd, base, zone, sec, secName, &type,
                        &eBeg, &eEnd, &nBdry, &parentFlag) != CG_OK)
       Terminate("readGridCGNS", cg_get_error());

     switch (type)
     {
       case TETRA_4:
         conn = connTetra; break;
       case PYRA_5:
         conn = connPyra; break;
       case PENTA_6:
         conn = connPrisms; break;
       case HEXA_8:
         conn = connHexa; break;
       case TRI_3:
         conn = connTri; break;
       case QUAD_4:
         conn = connQuad; break;
       default:
         Terminate("readGridCGNS", "Unsupported element encountered.");
         break;
     }

     /* Read the connectivity. Again, the node numbering of the */
     /* connectivities start at 1. If internally a starting index */
     /* of 0 is used (typical for C-codes) 1 must be substracted */
     /* from the connectivities read. */

     if(cg_elements_read(fileInd, base, zone, sec, conn, NULL) != CG_OK)
       Terminate("readGridCGNS", cg_get_error());
  }

Example - CGNS Code (5)

   /* Determine the number of boundary conditions for this zone. */

   if(cg_nbocos(fileInd, base, zone, &nBocos) != CG_OK)
     Terminate("readGridCGNS", cg_get_error());

   /* Loop over the number of boundary conditions. */

   for(boco=1; boco<=nBocos; boco++)
   {
     /* Read the info for this boundary condition. */

     if(cg_boco_info(fileInd, base, zone, boco, bocoName, &bocoType, &ptsetType,
                     &nBCElem, &normalIndex, &normListFlag, &normDataType,
                     &nDataSet) != CG_OK)
       Terminate("readGridCGNS", cg_get_error());

     /* Read the element ID's. */

     if(cg_boco_read(fileInd, base, zone, boco, BCElemRead, NULL) != CG_OK)
       Terminate("readGridCGNS", cg_get_error());

     /* And much more to make it fit into the */
     /* internal data structures. */
   }

Conclusions

• CGNS can store a wide variety of unstructured mesh types.
• Midlevel API offers many functions to read/write CGNS files, see midlevel/index.html
• Simple example to read a grid has been given.
• In a real code more API-functions will be used for checking the available data, etc.
