The CGNS System
Standard for Aerodynamic Data

Armin Wulf
ICEM CFD Engineering
January 13 1999

Overview

Introduction
Brief History of the CGNS Project
CGNS Conceptual Entity: The SIDS
CGNS Physical Entities:
- The ADF Core
- The CGNS Library
Examples of Implementation
Current Development
Future Development
Conclusion

Introduction

Objective: To offer the opportunity for seamless communication of CFD analysis data between sites, applications and system architectures.
Motivation: The disparity of data file format reduces the cost effectiveness of CFD while impairing its development.
Definition: The CFD General Notation System (CGNS) was conceived to provide a general, portable and extensible standard for the storage and retrieval of CFD analysis data.
CGNS Elements:
- Conceptual entity: Collection of conventions for the archiving of CFD data.
- Physical entity: Software that performs I/O operations in accordance with the defined concepts.

Brief History of the CGNS Project

1994-1995:
- Series of meetings between Boeing and NASA addressing means of improving technology transfer from NASA to Industry: The main impediment to technology transfer is the disparity of file formats.
1995-1998:
- Development of the CGNS System (SIDS, ADF) at Boeing Seattle, under NASA Contract with participation from:
  - Boeing Commercial Aircraft Group, Seattle
  - NASA Ames/Langley/Lewis Research Centers
  - Boeing St-Louis (former McDonnell Douglas Corporation)
  - Arnold Engineering Development Center, for the NPARC Alliance
  - Wright-Patterson Air Force Base
  - ICEM CFD Engineering Corporation
1997-1998:
- Development of the CGNS Library.
- Institution of the CGNS website (http://www.cgns.org) and first official release of the CGNS software and documentation.

CGNS Conceptual Entity:
The Standard Interface Data Structures (SIDS)

The SIDS constitutes the essence of CGNS. It defines:
- The intellectual content of CFD-related data
- The organizational data structure
- The naming conventions
Principal Characteristics of the SIDS:
- Hierarchical data structure
- Highly descriptive way of recording the data
- Ability to include unlimited documentation
- Complete and explicit problem description
- Layered so that much of the data structures are optional

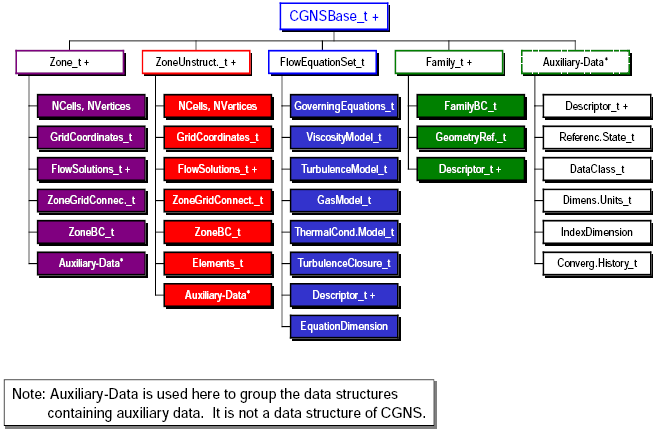

CGNS High Levels Chart

Chart showing high-level structures (i.e., nodes) in a CGNS file

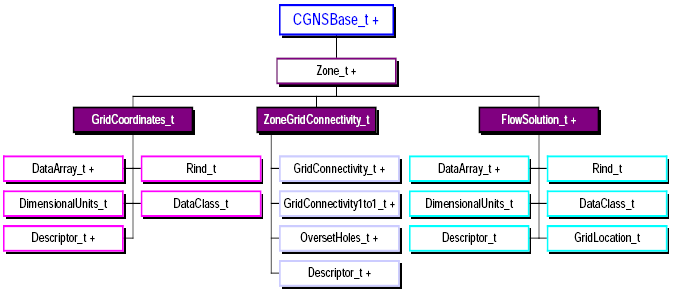

Grid Coordinates, Flow Solutions and Zone Connectivity Data Structures

Chart showing grid coordinate, zone connectivity, and flow solution nodes with their children

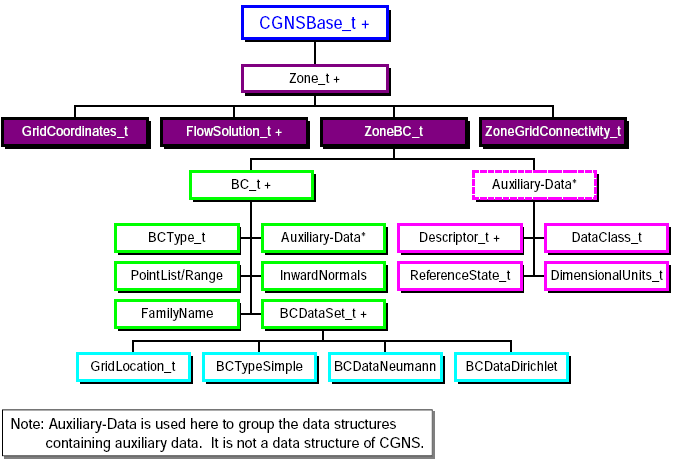

Zone Boundary Conditions Data Structure

Chart showing zone boundary conditions node with its children

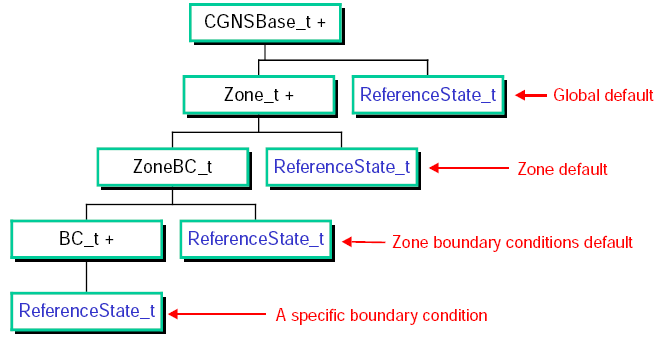

Globally Applicable Data and Precedence

Chart illustrating precedence rules and scope within the hierarchy

CGNS Physical Entities

The (ADF) Core:
- The Advanced Data Format (ADF) Core is a set of software routines performing I/O operations to/from an extremely general database system consisting of ADF files.
The CGNS Library:
- The CGNS Library is an Application Programming Interface facilitating higher level access of the data contained in an ADF database. The CGNS Library is built on top of the ADF Core and does not perform any direct I/O operation.

ADF Core Characteristics

Hierarchical data structure
- Quickly traversed and sorted
- No need to process irrelevant data
Based on a single data structure called an ADF node
Directed graph
May encompass several ADF files through the use of links
ADF database is self describing
Supports any type of data (integer, real, character, complex, byte, link ...)
Software written in ANSI C to insure its portability
Complete Fortran and C interface
Stored in compact C binary format
Independent of system architectures (Cray/Unicos, Sun/Solaris, SGI/IRIX, IBM/AIX, DEC-Alpha/OSF, Intel/Paragon)
Universal database (not specific to CFD only)

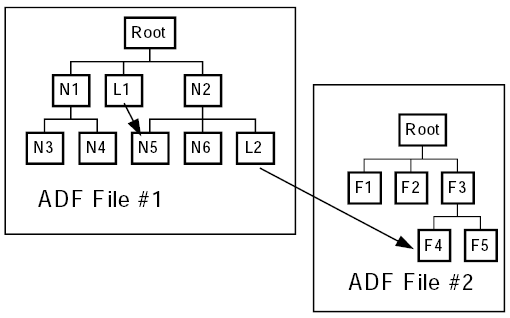

ADF Core

Chart illustrating ADF file structure with links

ADF Node Content

ID: A unique identifier to access a node within a file.
Name: A character field used to name the node. It must be unique for a given parent.
Label: A character field used to described the type of information contained in the node.
Data type: A character field specifying the type of data (e.g. real, complex) associated with the node.
Number of dimensions: The dimensionality of the data.
Dimensions: An integer vector containing the number of elements within each dimension.
Data: The data associated with the node.
Number of sub-nodes: The number of children directly attached to a node.
Name of sub-nodes: The list of children names.

Functions of the ADF Core

The ADF Core is composed of 34 low level functions performing the following operations:

open or close ADF file
read or set the data binary format
get the root-id or a node-id
create, delete or move a node
create, read or test a node link
get the children of a node
read or write the constituents of a node: name, label, data type, dimension, dimension vector and data
perform version and error control%

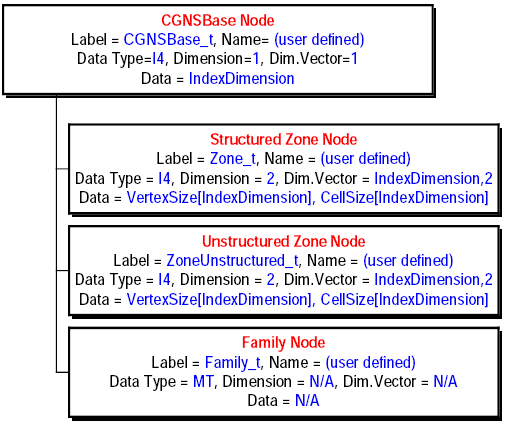

SIDS-to-ADF Mapping of Upper Levels

Chart illustrating contents of upper-level nodes

The Library Reflects Precisely the SIDS and Mapping

SIDS

   CGNSBase_t: = {
   int IndexDimension;
   List (Zone_tZone1,...ZoneN);
   ...}

   Zone_t : = {
      int[IndexDimension] VertexSize, CellSize;
      ...}

Mapping SIDS to ADF
For CGNSBase_t,
- Name = BaseName
- Label = CGNSBase_t
- Data type = I4
- Dimension = 1
- Data = IndexDimension
For Zone_t,
- Name = ZoneName
- Label = Zone_t
- Data type = I4
- Dimensions = IndexDim × 2
- Data = ZoneSize[] = VertexSize[], CellSize[]

Mid-Level Library Functions

   int cg_nbases(int FileNo, int *nbases);

   int cg_base_read(int FileNo, int BaseNo, char *BaseName, int *IndexDimension);

   int cg_nzones(int FileNo, int BaseNo, int *nzones);

   int cg_zone_read(int FileNo, int BaseNo, int ZoneNo, char *ZoneName, int *ZoneSize);

CGNS Library Design Philosophy

Communication Storage Media <=> Internal Database

   int cg_open(char *filename, int mode, int *fn);
   int cg_close(int fn);

Internal Representation
C-Structures Organized Hierarchically (SIDS)
Communication Internal Database <=> User-Application
46 Functions
Exception: Large Arrays
Keep ADF-ID in Internal Database Instead of Entire Array
- Reduce memory usage
- Improve execution speed

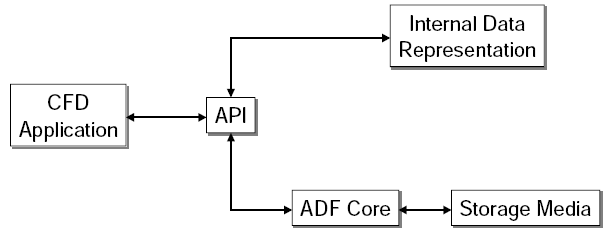

Data Flow

CGNS Library: General Remarks

C & Fortran functions
C: cg_name
Fortran: cg_name_f
Error Status = ier. If ier!=0, error detected.
C: return value
Fortran: extra argument
Platform Independent
CRAY, SGI-IRIX, DEC-Alpha, SunOS, HP, IBM

Examples of Implementation

Read bases, zones & coordinates

   cg_open(filename, MODE_READ, &fn);

   cg_nbases(fn, &nbases);

   for (B=1; B<=nbases; B++) {
      cg_base_read(fn, B, BaseName, &IndexDim);
      cg_nzones(fn, B, &nzones);
      for (Z=1; Z<=nzones; Z++) {

         cg_zone_read(fn, B, Z, ZoneName, ZoneSize)

         cg_coord_read(fn, B, Z, "CoordinateX", RealSingle,
                       RangeMin, RangeMax, X);
      }
   }
   cg_close(fn);

Read solutions

Given fn, B, Z:

   cg_nsols(fn, B, Z, nsolutions);

   for (S=1, S<=nsolutions, S++) {

      cg_sol_info(fn, B, Z, S, SolutionName, GridLocation);

      cg_nfields(fn, B, Z, S, nfields);

      for (F=1; F<=nfields; F++) {
         cg_field_info(fn, B, Z, S, F, DataType, FieldName);

         cg_field_read(fn, B, Z, S, FieldName, RealDouble,
                       RangeMin, RangeMax, DataArray);
      }
   }

Status

Completed (Version 1.0)
- Specification & software for ADF
- SIDS for multi-block structured
- API for multi-block structured
- ADF-Edit file browser
- Website at www.cgns.org: centralizes distribution of software and information, and tracks users (54 as of October 18 1998)
- CGNS-online exchange to/from CGNS-Support@CGNS.org for online help, gathering of suggestions, bug reports, etc.
In progress (Version 1.1)
- SIDS for unstructured and hybrid meshes
- SIDS for geometry links
- API for unstructured and geometry data

Current Development

Extension to Unstructured Meshes
- Use existing CGNS hierarchy as much as possible. Incorporate changes only where needed to support unstructured grids.
- Define new unstructured-grid zones
  - same as structured-grid zones except for connectivity information
- Define unstructured-grid connectivity information
  - element based connectivity
  - arranged by element type

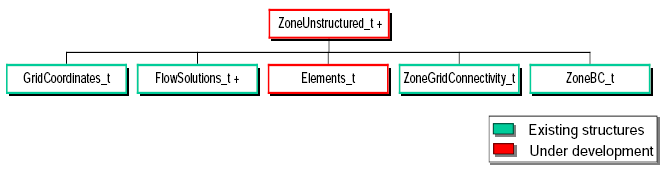

Unstructured Zone
- Vertex size: number of nodes
- Cell size: number of elements of highest dimension
Element Sections
- Section name: unique for a zone
- Element type: Hexa_8, Tetra_4, Penta_6, Quad_4, Tri_3, etc...
```
   NPE = NodePerElement(ElementType)
```
- Start and end index: element number of first and last elements
```
   nelem = end - start + 1
```
- Elements array:
```
   node(1,1),	  node(1,2)	 ... node(1,NPE)
   node(nelem,1), node(nelem,2), ... node(nelem,NPE)
```
Add Geometry-to-Mesh Association
- Necessary for
  - Quick response to design changes
  - Mesh adaptation
  - Analysis and Display of Results
- Objectives
  - Compatible to the CGNS System
  - Minimum Changes to the Existing SIDS
  - Reference data in CAD Files
  - Associate CAD Data to Mesh, Solution Data and Boundary Conditions
- Rarely a 1-to-1 connection between mesh regions & geometric entities.
- Association independent of changes to mesh & geometry.
- Boundary conditions & material properties can be defined on families
  - Independent of mesh and geometry.
  - Defined only once.

Future Actions

Build a User Base
- Advertise CGNS more
  - Give presentations at different organizations
  - Send a newsletter or leaflet to CFD groups
  - Advertise in Aerospace America
  - Submit to web search engines
  - Get e-mail lists from various government and industrial organizations, and send CGNS information
- Help implementing CGNS in key solvers, at NASA, Boeing, Gov't Labs...
  - Work together with solver developers to implement CGNS in their code
  - Provide training
  - Make available examples of applications on the web
Future Development Issues
- Extend supported data
  - Chemistry, Electromagnetic (Maxwell)
  - Experimental data e.g. pressure paint, flight test recording...
  - Add boundary conditions: Special topologies (C-grid), periodic...
  - Specialized data structures for Cartesian Grid support
- Give access to geometry data
  - Link to CAPRI
  - Link to geometry evaluator & repair kit
- Unstructured and hybrid mesh tools
  - Provide alternate connectivity representations, via quick sorting routines
  - Cell, face, edge, vertices neighboring information
  - Compression techniques
- Data tools
  - Data set interrogator: inventory of cell types, assess compatibility with specific codes, etc.
  - Data consistency check: element quality, b.c., coupling,...
  - Graphical User Interface to view the file content (similar to Windows-Explorer)
- Computer related issues:
  - Run time data management (as in PV3)
  - Parallel handling (MPI or shared memory)
- ISO Standard
  - Documentation and code development to meet further standardization requirements

Conclusion

defines conventions for an extremely complete problem description
hierarchical data structure optimizes the performance of the data exchange
machine independent compact binary data files
most data structures are supported by the CGNS library
version 1.0 available at www.cgns.org.
implemented successfully in CFL3D, OVERFLOW, ICEM-CFD Visual3, PEGASUS, ICEM-CFD Output-Interfaces, as well as translators for Plot3D, NPARC, TLNS3D, WIND
version 1.1 planned for end of December 1998 includes:
- CGNS Library coverage of the entire SIDS
- Geometry-to-Mesh Association and Unstructured Mesh
supports seamless communication of analysis data between user sites system architectures, and CFD applications.
should lead to the development of shared, reusable software selected on technical merit without concern for I/O compatibility.
